EL-810P (Elock/ Malaysia) là cảm biến đóng mở cửa cửa loại lớn, sử dụng trong mọi hệ thống An ninh – Kiểm soát ra vào – Báo động. NKTEK Phân phối tại Việt Nam
Xuất xứ: Elock, Malaysia
Thông số kỹ thuật
- Kích thước: 50mm x 10mm x 10mm
EL-810P 1 1/4 ” Door contact
Features
Is a large door contact, about 1 ¼” size. Suitable for most
security system.
▪ Ruthenium Over Gold Reeds
▪ UL approved PVC Lead Out wire
Specification
▪ Maximum Contact Rating :- 100VDC 0.5A 10W
▪ Wide Gap : 1 1/4″ ( 31 mm )
▪ Weather Resistant Rating IP65
Wide Gap 1 1/4″ ( 31 mm )
Closed Loop
▪ Dimension : (50 L x 10 W x 10 D) mm
▪ Safety Approval:- CE
▪ ISO 9000 certified Manufacturer
▪ Cable Spec : Length 300mm, 22AWG, UL1007 Standard

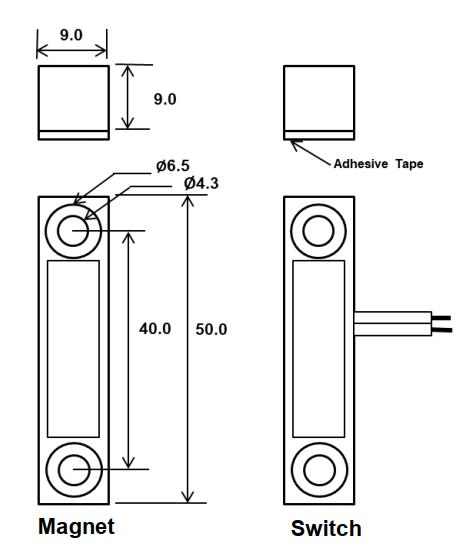

Product Dimension

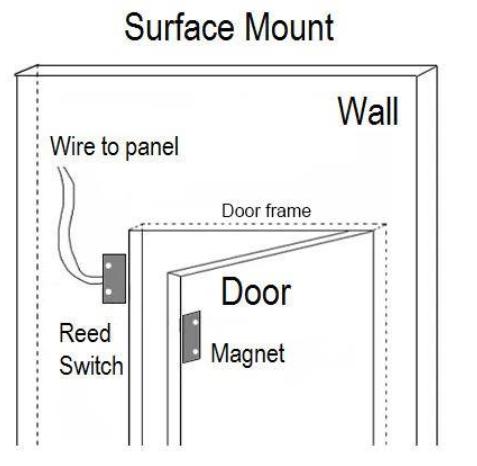

Product Installation
1. Place the switch (with wire) on door frame, mark the
mounting position and fix the screw in door frame to
mount the switch
2. Place the magnet on door leaf, mark the mounting
position and fix the screw in door leaf to mountthe
magnet
3. Make sure maximum gap is 31mm between switch and
magnet
4. Connect the wire leads from reed switch to panel
5. Designed for use with steel, wood and other door and
window materials
